Sterile Storage Solutions Hub
Gowning & Storage
Finish: Satin Hairline (240 Grit)100% Traceable SS
Himalayan Steel Precision Series

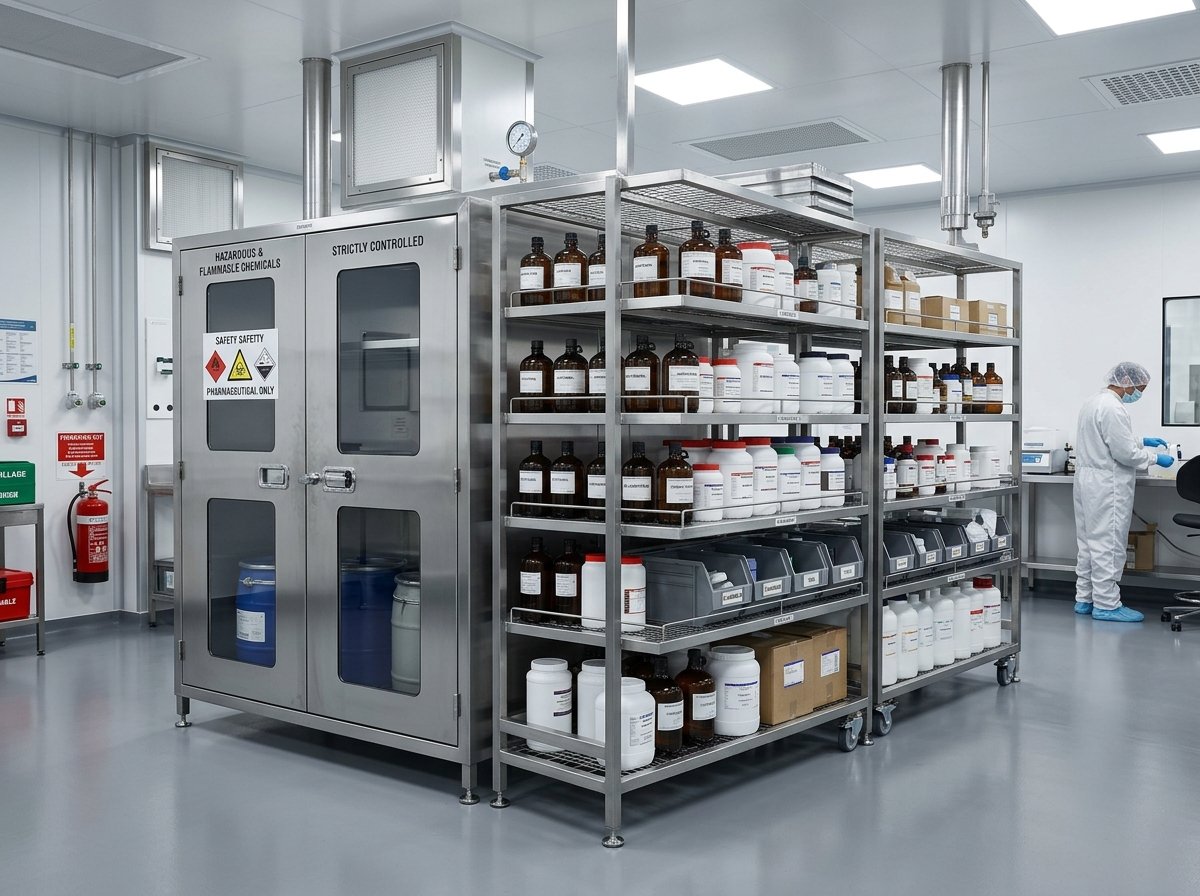

Sterile Storage Solutions Hub

A unified catalog of pharmaceutical-grade storage systems designed to eliminate clutter, prevent particulate deposition, and maximize space utilization in sterile change rooms, component prep suites, and packaging corridors.

Available Metallurgies
AISI 304 Full BodyAISI 316L Product Contact
Regulatory Compliance
cGMP Storage StandardsISO 9001:2015FDA 21 CFR Compliant
✓ Direct factory prices•✓ Material Test Certificate (MTC 3.1) included•✓ Pan-India Delivery

Engineering Overview & Fluid Dynamics

Active contamination barrier and laminar downflow principles

The Himalayan Steel Sterile Storage Solutions Hub brings together our full line of sanitary storage equipment—including dynamic laminar garment cubicles, static sloped-top wardrobes, cross-over step benches, multi-tier perforated racks, and heavy-duty tooling cupboards. All storage units share identical cGMP sanitary design DNA: sloped top profiles to eliminate dust perches, 100% crevice-free continuous GTAW welds, and electropolished stainless surfaces designed for daily chemical wipe-downs.

Technical Engineering Specifications

Standard dimensional tolerances, electrical parameters, and air quality ratings

Storage SystemsGarment Wardrobes, Step-Over Benches, Perforated Racks, Tooling Cupboards
Material GradeHeavy-gauge AISI 304 / 316L stainless steel
Roof ProfileSanitary 30-degree sloped roof design on all enclosed cabinets
Airflow FriendlyPerforated shelf tiers allow laminar airflow passage without dead zones
Sanitary Welding100% continuous TIG welds, ground flush and polished to cleanroom finish
Floor Hygiene100 mm raised tubular legs or sealed toe kicks permit easy cleaning underneath
Load CapacityEngineered with reinforced box sections to carry up to 150 kg per shelf tier
HardwareStainless steel continuous piano hinges, 3-point locks, and silicone gaskets

Standard Dimensional Matrix

Fabrication schedule comparison in Imperial and Metric standards

Custom dimensions available on request
Size (Feet)Metric (MM)Internal Chamber (W x D x H)External Footprint (W x D x H)
Standard Facility PackageConfigured to room dimensionsStandardized modular unitsCAD floor plan
Custom Storage LayoutEngineered to room heightTailored shelving tiersCustom shop drawings
Note:External dimensions include top motor plenum and side return ducting. Himalayan Steel Industries custom-tailors flange profiles to fit any wall panel thickness (50 mm, 80 mm, 100 mm).

Cleanroom Construction & Architectural Design

cGMP sanitary fabrication details from our Baddi engineering works

Standardized 30-Degree Sloped Roofs

All cabinets feature permanently formed sloped roofs to comply with cGMP inspections and prevent workers from storing boxes on top.

Internal Hat-Section Stiffeners

Shelves and cabinet panels are reinforced with welded stainless steel hat channels to prevent oil-canning and distortion under load.

Food-Grade Silicone Gaskets

Enclosed wardrobes and cupboards feature continuous silicone seals that prevent dust and moisture from entering.

Raised Sanitary Tubular Legs

100 mm floor clearance on tubular legs allows mops and sanitizing vacuums to clean underneath without moving heavy furniture.

Burr-Free Perforated Surfaces

All perforated racks feature machine-deburred holes to prevent snagging cleanroom gloves or tearing sterile wrapping.

Stainless Leveling Studs

Heavy-duty threaded stainless leveling feet with non-marking nylon pads guarantee stability on all floor types.

Standard Operating Protocol (cGMP SOP)

Standard operating guidelines and contamination control sequence

SOP REFERENCE GUIDE
Objective
To establish protocol for maintaining sterile storage equipment across cleanroom suites.
Scope
Applies to all storage cabinets, racks, and benches in production and gowning areas.
Responsibility
Store Officers, Cleanroom Operators, and QA Inspectors.

Step-by-Step Material Transfer Sequence

1
Inspect storage units to ensure shelves are secure and clean before placing items.
2
Store items orderly: heavy tooling on bottom shelves, sterile packaged items in middle tiers.
3
Keep cabinet doors closed and locked when not actively loading or retrieving items.
4
Do not place items on top of sloped cabinet roofs.
5
Sanitize contact points regularly using 70% filtered IPA.

Sanitization & Wipe-Down Protocol

  • Wipe external and internal surfaces weekly with 70% IPA.
  • Clean floor space underneath cabinets daily during floor mopping shifts.
  • Inspect door silicone gaskets quarterly for elasticity.

Fail-Safe Interlock Protection

  • 3-point espagnolette locking hardware keeps doors firmly closed and sealed.

Optional Engineering Customizations

Site-specific hardware adaptations

  • UV-C germicidal disinfection lamps with automatic safety shut-off switches
  • Digital combination locks, RFID badge sensors, or master-keyed lock cylinders
  • Clear toughened safety glass view windows in doors
  • Conductive polyurethane wheels for mobile storage units
  • Perforated document holders and label tag slots

Quality Validation Package (DQ/IQ/OQ)

Audit-ready documentation for US FDA and EU-GMP inspections

  • Design Qualification (DQ) Documentation & CAD Layouts
  • Installation Qualification (IQ) Anchoring & Leveling Checklists
  • Material Test Certificates (EN 10204 Type 3.1) for Stainless Steel
  • Load Bearing Certification (150 kg/tier capacity verified)

Cleanroom Design Highlights

  • Complete storage portfolio designed specifically for pharmaceutical cleanrooms
  • Eliminates dust perches with standardized 30-degree sloped roof profiles
  • Heavy-gauge stainless steel prevents denting, scratching, and chemical corrosion
  • Sanitary coved corners allow rapid and thorough alcohol wipe-down

Target Pharmaceutical Applications

Sterile Change Rooms & Gowning Airlocks
Autoclave Unloading Component Staging Areas
Packaging Line Tooling & Die Storage
Batch Record & Document Archives in Cleanrooms
Quality Control Reagent & Retained Sample Rooms

Explore Other Equipment Divisions

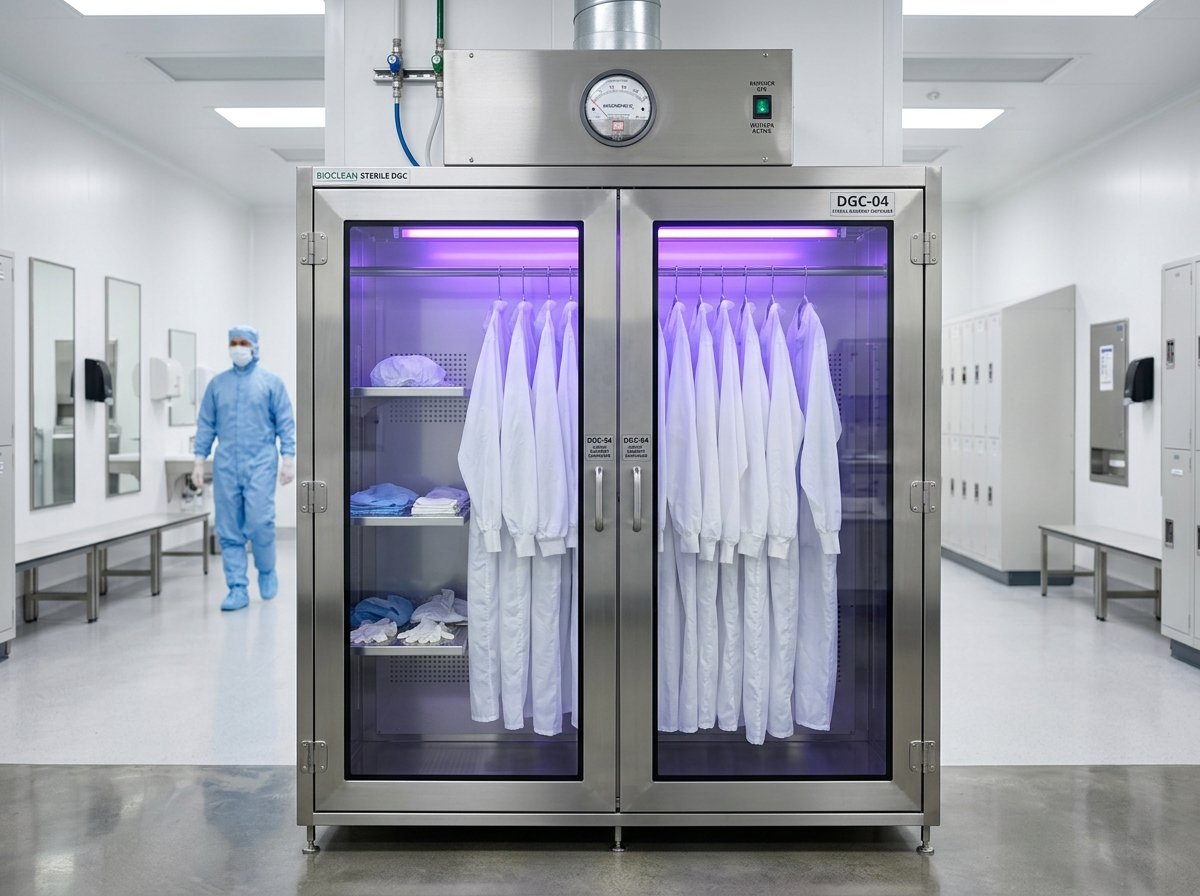

Dynamic Garment Storage Cubicle (DGC)

Dynamic Garment Storage Cubicle (DGC)

Active Class 100 vertical laminar flow sterile garment cabinet with UV-C disinfection and perforated shoe storage.

Static SS Cleanroom Garment Cabinet

Static SS Cleanroom Garment Cabinet

Sloped-top stainless steel gowning storage cabinet with hanging rod, shoe shelves, and lockable glass doors.

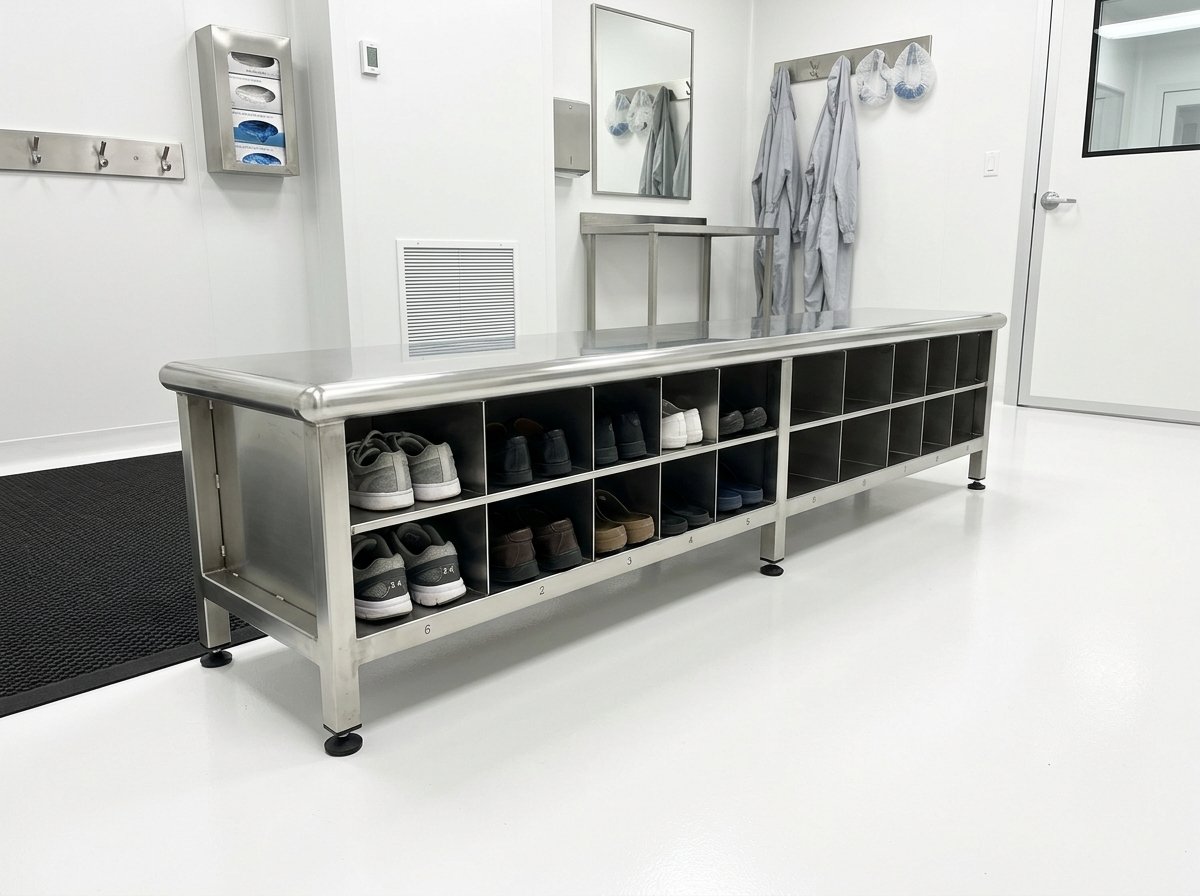

Cleanroom Cross Over Bench (Step-Over Bench)
